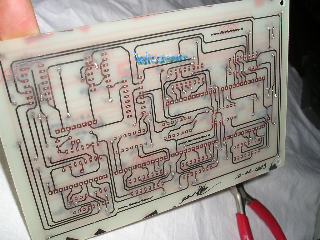

PCBs were fabricated on single side (where necessary) or double sides then covered by a protective polymeric layer

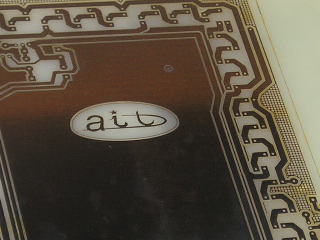

PCB display detail after it has been drilled

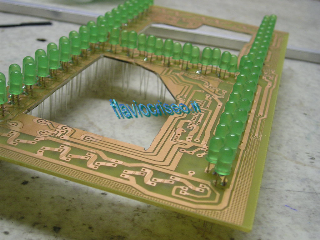

More than 120 leds have been installed for each display

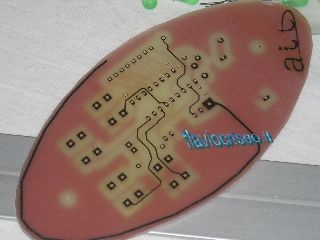

Radio control PCB (cut and drilled) ready for the following work up

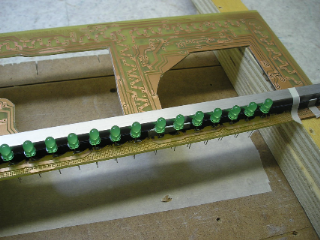

A display during the leds mounting stage
