Model flx40207 Hi-Fi

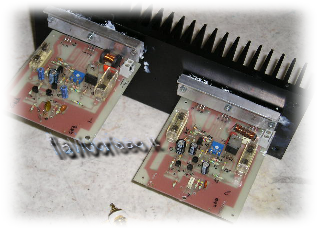

Image: Dual Mono project previous to final connection

The dimensions of the electronic parts, the cure in the design of the PCB are constantly object d' attention since makes of calculation and planning

Detail dell' local power supply and constant comparation with the plan and the assembly

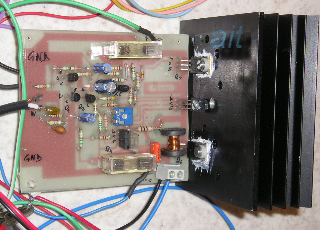

MOS final amplifier Mono Layout

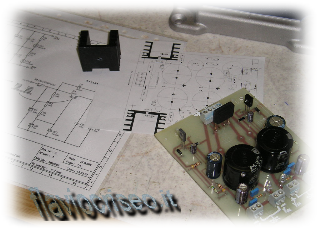

Project: Class AB

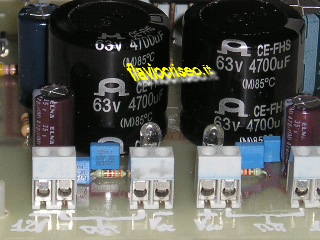

Power Supply section: Detail of the contacts electrical workers

Aditional different prototypes and models: from project to plan design click here
